Motor Setup

The motor setup remains the same across all gantries.

Regardless of whether you are using it on a Voron 3D Printer, VZBOT, or RatRig vCore 3.1 or 4.

AWD Configuration:

  • The X motor is always in the front left.
  • The Y motor is always in the front right.
  • The X1 motor is always in the back right.
  • The Y1 motor is always in the back left.

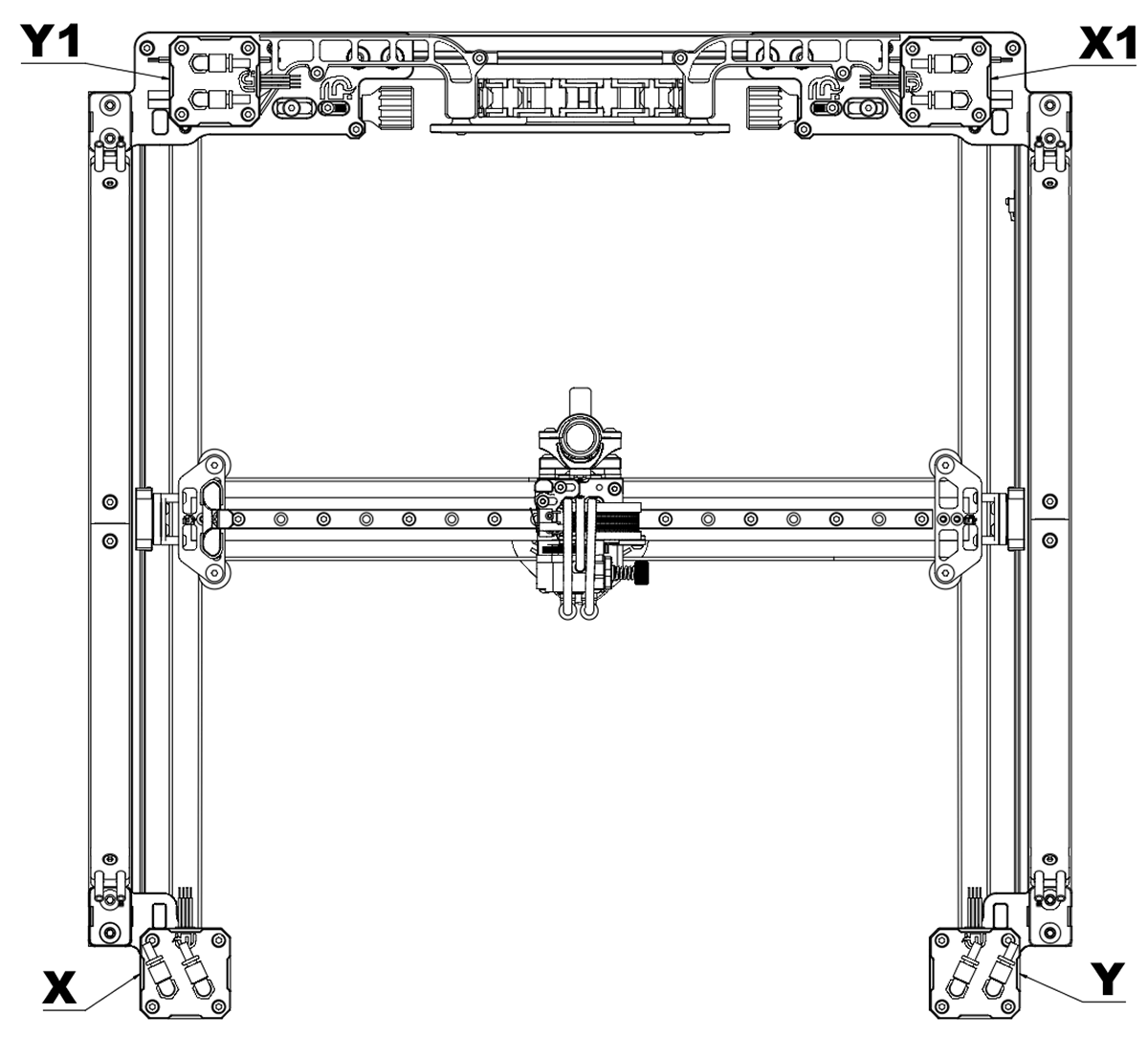

mammoth-3D Gantry Motor Setup

2WD Configuration:

  • The X1 (X) motor is always in the back right.
  • The Y1 (Y) motor is always in the back left.
