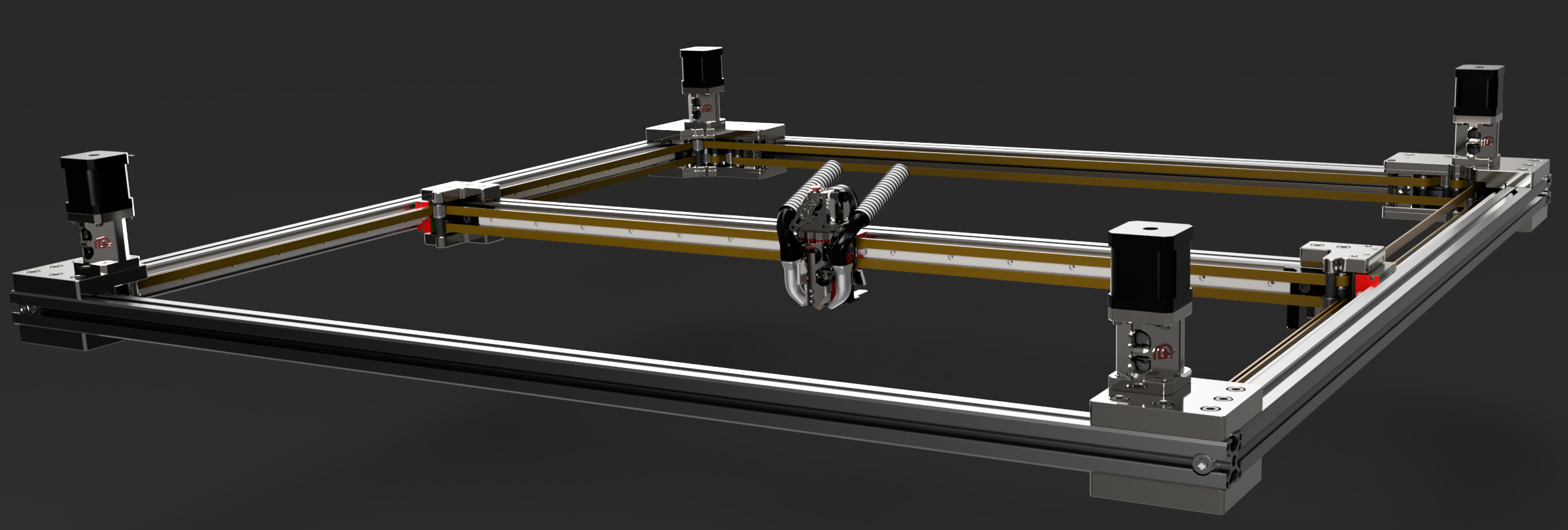

Elegoo Orange Storm Giga - Bill of material¶
Version: 1.00 / 18.02.2026¶
Idlers¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 8x | GT2 Smooth Idle / Bore 5mm for 9mm belts (14/11) | Aluminium | Mellow 3D | McMaster | Fabreeko |
| 6x | GT2 20 Tooth Idler / Bore 5mm for 9mm belts (14/11) | Aluminium | Mellow 3D | McMaster | Fabreeko |
Pulleys¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 4x | GT2 20 Tooth Pulley / Bore 5mm for 9mm belts | Aluminium | Mellow 3D | KB3D | Fabreeko |
Warning
This MOD was made for 14/11mm Pulleys. Please check before using different once.
Bearings¶
| Quantity | Description | Standard | Link1 | Link2 |
|---|---|---|---|---|
| 8x | Steel Flanged Ball Bearing, Shielded, Trade: F625-2Z | Steel | Aliexpress | McMaster |
| 4x | Steel Flanged Ball Bearing, Shielded, Trade: F115-2Z | Steel | Aliexpress | McMaster |
h6 Precision dowel pins¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 16x | h6 Precision dowel pins M5x45mm | Steel | Aliexpress | BRW | McMaster |
| 4x | h6 Precision dowel pins M5x75mm | Steel | Aliexpress | BRW | McMaster |
Screws¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 4x | M2x10 SHCS | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
| 2x | M3x4 SHCS | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
| 48x | M3x8 SHCS | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
| 19x | M3x12 SHCS | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
| 4x | M3x16 SHCS | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
| 4x | M3x55 SHCS | ISO 4762 / DIN 912 | McMaster | Aliexpress | |
| 12x | M3x65 SHCS | ISO 4762 / DIN 912 | McMaster | Aliexpress | |
| 7x | Low Profile M3x6 | ISO 4762 / DIN 912 | McMaster | Aliexpress | |
| 8x | Low Profile M3x8 | ISO 4762 / DIN 912 | McMaster | Aliexpress | |
| 2x | M4x25 SHCS | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
| 12x | Low Profile M4x6 | ISO 4762 / DIN 912 | McMaster | Aliexpress | |
| 54x | M6x16 SHCS | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
| 4x | M8x60 SHCS | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
Sholder bolts¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 2x | Sholder bolt 50mm: Shoulder Diameter (d) 5mm / Thread Size 4mm | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
Bushings¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 12x | Bushing M3x6x30mm | ISO 4762 / DIN 912 | Aliexpress | Aliexpress | Aliexpress |
| 14x | Bushing M5x8x20mm | ISO 4762 / DIN 912 | Aliexpress | Aliexpress | Aliexpress |
Precision shims¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 28x | Precision shims M5x7x0.5mm | ISO 4762 / DIN 912 | Fabreeko | KB3D | Aliexpress |
| 18x | Precision shims M5x7x1mm | ISO 4762 / DIN 912 | XRAY | KB3D | Aliexpress |
Tip
If you can not find M5x7x1mm Precision shims, just get 36x M5x7x0.5mm extra.
30 Series: T Spring Nuts¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 54x | M6 T-Nut | ISO 4762 / DIN 912 | Aliexpress | McMaster | Amazon |
Threaded Insert¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 | Link4 |
|---|---|---|---|---|---|---|
| 2x | M2 Threaded Insert (M2x3.6mmx3mm) | Brass | Fabreeko | KB3D | CNC Kitchen | |
| 54x | M3 Threaded Insert (M3x5mmx4mm) | Brass | ruthex | Fabreeko | KB3D | CNC Kitchen |
| 2x | M4 Threaded Insert (M4x6.3mmx4mm) | Brass | Fabreeko | KB3D | CNC Kitchen |
Couplers¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 4x | M5-M5 Coupler | Aluminium | Amazon | Fabreeko | Aliexpress |
Cross Hole Hammer Nuts¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 2x | M4x25mm Hammer Nut | ISO 4762 / DIN 912m | Amazon | Aliexpress | Aliexpress |
Washer¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 2x | M3 Washer | ISO 4762 / DIN 912 | Bolt Depot | McMaster | Aliexpress |
GATES-LL-2GT Belt¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 8x | GATES-LL-2GT Belt (9mm wide) | GT2 | Fabreeko | KB3D | Mellow 3D |
| 8x | GATES-LL-2GT Belt (9mm wide) | GT3 | Fabreeko | KB3D | Mellow 3D |
X/Y-Axis 9mm Belt¶
Tip
| X-Axis | Y-Axis |
|---|---|
| You will need about 3.9 meter for the x-axis, please order 4 meters. | You will need about 3.9 meter for the y-axis, please order 4 meters. |
3030 Aluminium Profile¶
| Quantity | Description | Standard | Link1 | Link2 | Link3 |
|---|---|---|---|---|---|
| 2x | 3030x1095mm | Aluminium | Misumi | myaluprofil | Aliexpress |
| 2x | 3030x1035mm | Aluminium | Misumi | myaluprofil | Aliexpress |
| 1x | 3030x968mm | Aluminium | Misumi | myaluprofil | Aliexpress |
